I’ll be completely honest here, toilets are one of the last things I expected to zoom in on on this blog, but here I am, giving an up-close peek into our bathroom, and geeking out over high-tech fixtures.
Last December, I toured the HGTV Dream Home as a correspondent for Delta. The company paid for the trip and offered one of the products it was featuring in the Dream Home. The house was fit with Touch2O fixtures (we already have one of those faucets), a pot filler, and various bathroom accessories, but the Brevard™ with FlushIQ™ toilets featuring touch-free flush technology had me especially curious. I can’t believe how far home technology has come.
I suspect you have some initial skepticisms (you may not even realize it yet) but I think I can dispel some curiosities as I go, so keep on scanning.
There’s only one thing I can’t attest to yet, and that’s how exactly I explain this technology to the Grandmas (based on Touch2O lessons, this may be entertaining and potentially awkward, but not promising).
Before I get into the installation, let’s touch upon some of the cool-factor:
Our main bathroom toilet has a sprayer attached to it which we use when cleaning our daughter’s cloth diapers. The hookup from the main valve didn’t have to change, but for posterity, I snapped a photo of how it was attached to the old toilet.
Removing a toilet is one of those life skills we all need, and short of suggesting that maybe you should have an extra set of hands for lifting the fixtures, this is an upgrade you can easily do by yourself (start to finish in less than an hour).
Start by turning off the water, and flushing the toilet one last time to remove some of the water from the bowl and tank without it refilling. Use both small cups and sponges to remove the rest of the toilet water from the bowl and tank – sure, it’s clean water, but your toilet is still dirty, so discard all of it, and scrub your hands well when you’re done.
Unscrew the water source. You’ll probably find that a few more drops of water leak out from the connection, so be prepared with a towel.
The old toilet is installed using two bolts, one on either side of the base. Remove both, and then lift the toilet straight up.
Your toilet looks like this underneath it too, believe me. Hope that there is no standing water beneath it, and only dust and dirt that was inadvertently swept and collected beneath the base. This is your chance to clean where you’ve never cleaned before, and it will be equally disgusting and incredibly satisfying.
The wax ring that sealed this old toilet around the plumbing will pry free, much of its residue left around the floor flange. You’ll want to clean away as much of the old wax as possible, so that the new wax ring can have a chance at a tight seal with the flange (and not just be smushing against old layers of wax). Use whatever tools you have on hand that you can easily clean, and be careful not to drop anything down the pipe (rings, earrings, glasses, whatever).
This is a rare opportunity to also check the condition of your flange and pipe. Scope it out for cracks, especially if it’s old, and if you’re like us, move that bathroom renovation back up to the top of your to-do list because…. well, sometimes you’ll find minor issues that could potentially become major ($$$).
Once the wax is cleaned away, identify the grooves in the flange and, following instructions, navigate the bolts into the grooves to lock them in place. Make sure that the bolts are directly across from each other, and evenly distanced from the wall behind the toilet. Just like with the toilet you removed, the bolts will fall evenly on each side of the toilet base.
The toilet comes with a new wax ring. If you stumbled upon this tutorial and you just need to reseal a leaking toilet, you can buy a new wax ring at the store for ~$5 and repair the leak yourself following these same instructions.
This is where it helps to have an extra set of hands. Lift the uninstalled new toilet, and slowly lower it over the bolts ensuring that they remain straight up and down. Also, have your partner bend down to make sure the wax ring is aligning with the plumbing on the underside of the toilet.
And then when you’re confident that the orientation of the toilet is right on, the heavier of you two, or maybe even both of you, climb up on that toilet and let your weight help to compress the wax ring and create a tight seal around all of that important plumbing. Monitor that the toilet isn’t twisting on the flange, and watch to see when the base of the toilet comes in contact with the floor. I’m not a fan of using caulk during a toilet install, but in some towns and cities it’s to code, so do your homework. For what it’s worth, I think some towns also require plumbers to replace toilets and related plumbing fixtures.
Once the wax ring is compressed to the best of your ability, use the bolts at the base to tighten the fixture the rest of the way. Alternately tighten one side, and then the other, and back and forth, so that it evenly compresses. Don’t over-tighten, but do test the seat periodically to feel if it bounces or shifts.
The tank itself isn’t connected to the toilet base when it arrived, but Delta’s product has a SmartFit™ Tank-to-Bowl Connection which means that the tank is complete pre-assembled in the box. This means that it installs quickly, and you won’t have to be fidgeting with the connections and seals, which can result in leak points. Just follow directions to bolt it into place. This toilet has three bolts. Don’t over tighten, because like with any toilet, if a bolt cracks the porcelain tank, you’re done. Also, make sure that the back of the tank is square with the wall behind it.
Once the tank was installed on the base, I expected a complicated process to connect the electronics that make this toilet have its touch-free flush. In reality, this was the easiest part of the install, as it was literally just a matter of plugging a wire emerging from the base to a wire on the tank.
The no-touch mechanism operates off four AA batteries, sealed in a case at the top of the tank (well out of reach of the water, but covered to resist getting tapped with splashes or condensation).
You might wonder at some point prior to purchasing this product whether the toilet is going to try and flush on you while you’re sitting on it – if you’ve used a public bathroom with a self-flushing toilet ever, you’ll know the fear I’m talking about. With the FlushIQ, I’m very relieved to say that it doesn’t flush while you’re sitting there because the raised lid blocks the sensor, and when the lid is closed and you’re simply walking around your bathroom, you can’t trigger the flush unless you “wave” very close to the sensor. The mechanism also has a locking feature that you can set so that the toilet doesn’t try and flush while you’re cleaning it.
The seat that comes with the toilet is a slow-close, quick release seat which is nice for several reasons: The quick release means that the seat and lid can unlock in and out of place for easy cleaning of both the seat and lid, and of the toilet base (no tools necessary for removal), and the slow-close feature eliminates the slamming of dropped lids and seats (a feature as nice as self-closing drawers in a kitchen).
When you’re done, the last step is to turn the water back on. Go ahead, give it a try. Watch closely at all connections to monitor for water drips – it should all remain dry. Flush it a few times to make sure the tank and bowl empty and fill as you would expect and, again, check for signs of moisture beneath the tank.
Good to go – uh, gross.
Thanks Delta ;)

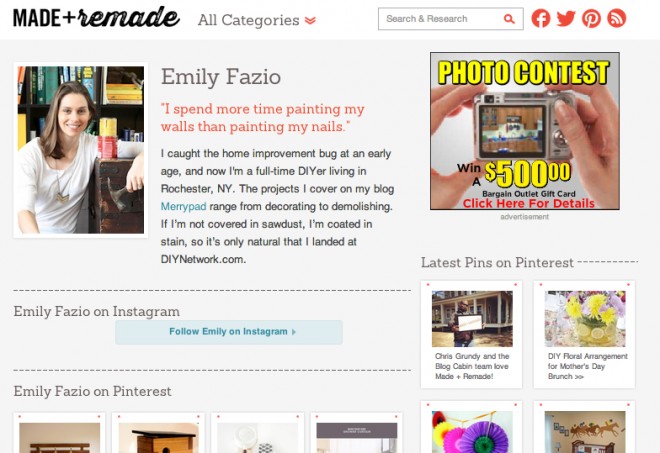

DIY Network’s blog Made + Remade has an ongoing series dedicated to featuring the Creative Geniuses among us. I’ve had a couple of great interviews already this year and more scheduled over the next few weeks, and I wanted to be sure you checked them out, because if I found them interesting and inspiring, you probably would too.
